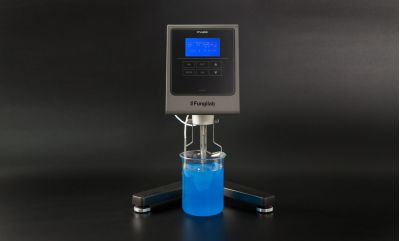

fungilab MASTER 粘度计 SMART
当前位置:网站首页 » 产品展示 » 粘度计 » 福来粘度计 » fungilab MASTER 粘度计 SMART
fungilab MASTER 粘度计 SMART
添加时间:2020-06-19 06-32-27 作者:chenhui

Smart Series

Essential in investigation and quality control Laboratories.

Screen Data
Selected speedrpm
Selected spindleSP
Viscosity readingcP (mPa·s) or cSt
Percentatge of full scale%
Sample temperatureºC or ºF
Shear Rate (with coaxial spindles)SR (s-1)
Shear Stress (with coaxial spindles)SS (N/m2)
Density (introduced by the user)g/cm3

Viscosity reading
Dynamic viscositycP or mPa·s
Kinematic viscositycSt
Units Converterfrom SI to CGS

Program features
Time to torque: Ending of the test upon reaching a programmed torque
Time to stop: Ending of the test upon reaching a programmed time
10 working memories

Other main features
AUTO-TEST with visual and resonant alarm
AUTO-RANGE function
Temperature Reading through PT100 probe
User-enabled viscosity and temperature calibration
6 language options
Port: USB
Datalogger: Posibility to tranfer data to a pendrive into Excel format
6 key Touch Keyboard

Spindles

AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfills the next standards: These are the standards our units follow: BS: 6075, 5350

  • BS: 6075, 5350

  • ISO:2555,1652

  • ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Standard delivery

  • The equipement is supplied complete with standard spindles

    • 4 spindles for L model

    • 6 spindles for R and H models

  • Viscometer stand

  • Spindle protector

  • Temperature probe PT100

  • Carring case

Technical specifications

Precision: +/- 1% full scale of range

Resolution: For a minus viscosity of 100 cP : 0.01 cP For a major viscosity of 1000 cP : 0.1 cP For a major viscosity of 5000 cP : 1.0 cP For a major viscosity of 10.000 cP : 5.0 cP For a major viscosity of 25.000 cP : 10.0 cP For a major viscosity of 50.000 cP : 25.0 cP For a major viscosity of 100.000 cP : 100.0 cP For a major viscosity of 1.000.000 cP : 1.000.0 cP

Repeatability: 0.2%

Temperature probe features: Temperature limits: -40ºC to 300ºC -40ºF to 572ºF Resolution: 0.1ºC / -17.722 ºF Precision: +/- 0.2ºC / +/- 17.666 ºF Type of probe: PT100

Supplied at 110-240VAC, 50/60 Hz.

Software: Fungilab Data Boss (optional): The Fungilab Data Boss software complies the FDA 21CFR PART 11 regulation

Accessories

APMSmall Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers

APM/BSmall Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers

LCPLow Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers

LCP/BLow Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers

HELDALHelix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)

THERMOSPHERETemperature control unit up to 300 ºC

CodeModelMeasuring Range (cP)Speed (r.p.m)Number of speeds
V210003SMART L*1 - 6.000.0000.01 - 20054
V210002SMART R25 - 40.000.0000.01 - 20054
V210001SMART H200 - 320.000.0000.01 - 20054

The viscosity range of the equipment is referenced between 0.01 and 100 rpm.PPRFast spindle switch (push plug and release)

CodeModelMeasuring Range (cP)Speed (r.p.m)Number of speeds
V211003SMART L + PPR*1 - 6.000.0000.01 - 20054
V211002SMART R + PPR25 - 40.000.0000.01 - 20054
V211001SMART H + PPR200 - 320.000.0000.01 - 20054

The viscosity range of the equipment is referenced between 0.01 and 100 rpm.

Ranges

  • (L) Low viscosity model

  • (M) Medium viscosity model

  • (H) High viscosity model

Low viscosity: The minimum viscosity when using a "L" range with standard spindles is 10cP. (*) For measurements<10cP, its recommended to use in conjunction with the low viscosity adaptor (LCP or LCP/B)

==========================================================

标准配置

主机、3级调平旋钮、标准粘度转子套件(L型4个,R型和H型6个)、转子保护腿、转子支架、PT100温度探头、含数据记录软件的CD、USB数据线、手提箱、电源线、校准证书、操作手册

功能特点

>6键触摸按键

>直观的图形显示

>数据显示

  • 转速:r.P.m

  • 转子:SP

  • 粘度:cp(mPa.s)或cSt

  • 满量程的百分比:%

  • 样品温度:℃或℉

  • 剪切速度(SR):S-l

  • 剪切应力(SS):N/m2

  • 密度(需客户输入):g/cm3

备注:剪切应力和剪切速率需要配套同轴转子的时候才能显示

>粘度测量:

  • 动力粘度(cp或mPa.s)

  • 运动粘度(cSt)(粘度测量之前,需要客户提前输入样品密度值)

>单位换算:SI单位制转换为CGS单位

>程序测量

  • 可存储10 个程序,便于以后快速调用;

  • 可选择TTT(到达某扭矩停止测量)和TTS(到达某时间段停止测量)测量模式。

>自检功能:粘度计自检功能,声光报警提醒

>量程功能:选择好转子和转速组合之后,将自动计算该组合下的最大量程(AUTO-RANGE 功能可以预测当前转速和转子组合下的粘度最大量程)

>通过PT100读取温度

>用户自定义的粘度和温度校准

>10种语言可选择

>Datalogger软件实现由USB口将实验数据下载至电脑EXCEL软件,并可打印输出




技术规格

  • 重复性:0.2%

  • 精度:满量程的±1%

  • 粘度分辨率:

         使用LCP(低粘度适配器):0.01CP;

         当粘度低于10000cP时:0.1cP;

         当粘度高于10000cP时:1cP

  • 温度范围:0℃—+300℃

  • 温度分辨率:0.1℃

  • 温度精度:±0.1℃

  • 温度探头:PT100

  • 所有转子均有AISI A316不锈钢制成

  • 电源:100一240VAC,50/60HZ



标准配置

主机、3级调平旋钮、标准粘度转子套件(L型4个,R型和H型6个)、转子保护腿、转子支架、PT100温度探头、含数据记录软件的CD、USB数据线、手提箱、电源线、校准证书、操作手册



可选附件

小样品量样品适配器APM、低粘度样品适配器LCP、高粘度样品适配器Heldal unit、标准硅油、水浴、通用适配器、PPR快拆系统、桨叶转子



货号

型号

测量范围(cP)

速度(r.p.m)

档数

V200003

Smart L

*1-6,000,000

0.01-200

200

V200002

Smart R

25-40,000,000

0.01-200

200

V200001

Smart H

200-320,000,000

0.01-200

200

备注:L型配备超低粘度适配器,最低粘度可以测到1mpas.R型配备超低粘度适配器最低粘度可以测到15mpas。
